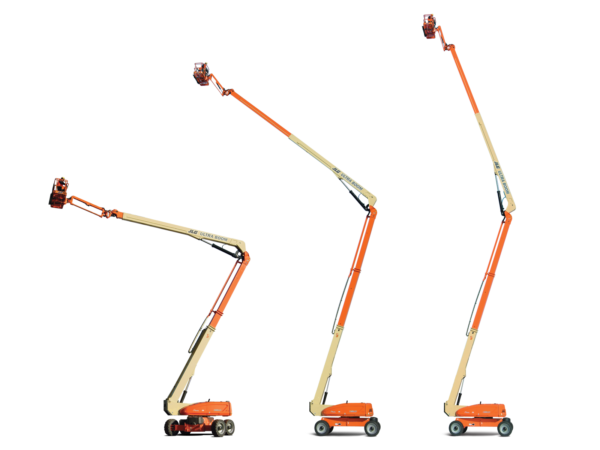

125′ Boom Lift

Availability : In stock
Call for Price
  • Reach Specifications
    Horizontal Jib Rotation 125 Degrees
    Horizontal Outreach 63 ft 2 in. / 19.25 m
    Platform Height 125 ft / 38.1 m
    Up and Over Height 60 ft 6 in. / 18.44 m
Compare

1250AJP Spec Sheet

Articulating Boom Lift, 125′, 4WD

Power Source
Auxiliary Power 12 Volts DC
Capacity – Fuel Tank 31 gal. / 117.35 L
Engine Type – Diesel DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp



Performance
Axle Oscillation 8 in. / 0.2 m
Drive Speed – 4WD 3 mph / 5.23 km/h
Gradeability – 4WD 45 %
Platform Capacity – Restricted 1000 lb / 453.59 kg
Platform Capacity – Unrestricted 500 lb / 226.80 kg
Swing 360 Degrees
Swing Type Continuous
Turning Radius – Outside (axles extended) 19 ft 4 in. / 5.89 m
Turning Radius – Outside (axles retracted) 22 ft 6 in. / 6.86 m
Jib – Range of articulation 130 Degrees



Dimensional Data
Ground Clearance 1 ft / 0.3 m
Machine Height 10 ft / 3.05 m
Machine Length 47 ft 6 in. / 14.48 m
Machine Width 8 ft 2 in. / 2.49 m
Overall Width (Axles Extended) 12 ft 6 in. / 3.81 m
Transport Length 37 ft 7 in. / 11.46 m
Platform Dimension A 3 ft / 0.91 m
Platform Dimension B 8 ft / 2.44 m
Tailswing 3 ft / 0.91 m
Tire Size 445/500710 Foam-Filled



Reach Specifications
Horizontal Jib Rotation 125 Degrees
Horizontal Outreach 63 ft 2 in. / 19.25 m
Platform Height 125 ft / 38.1 m
Up and Over Height 60 ft 6 in. / 18.44 m



General
Capacity – Hydraulic Reservoir 53 gal. / 200.63 L
Maximum Ground Bearing Pressure 100 psi / 7 Kg/cm2
Machine Weight 44000 lb / 19958.06 kg
