40 ft Narrow Electric Boom Lift (Genie Z40/23 N RJ)

The Genie Z-40/23 NRJ is a compact electric articulating boom lift designed for precision work in tight-access jobsites.

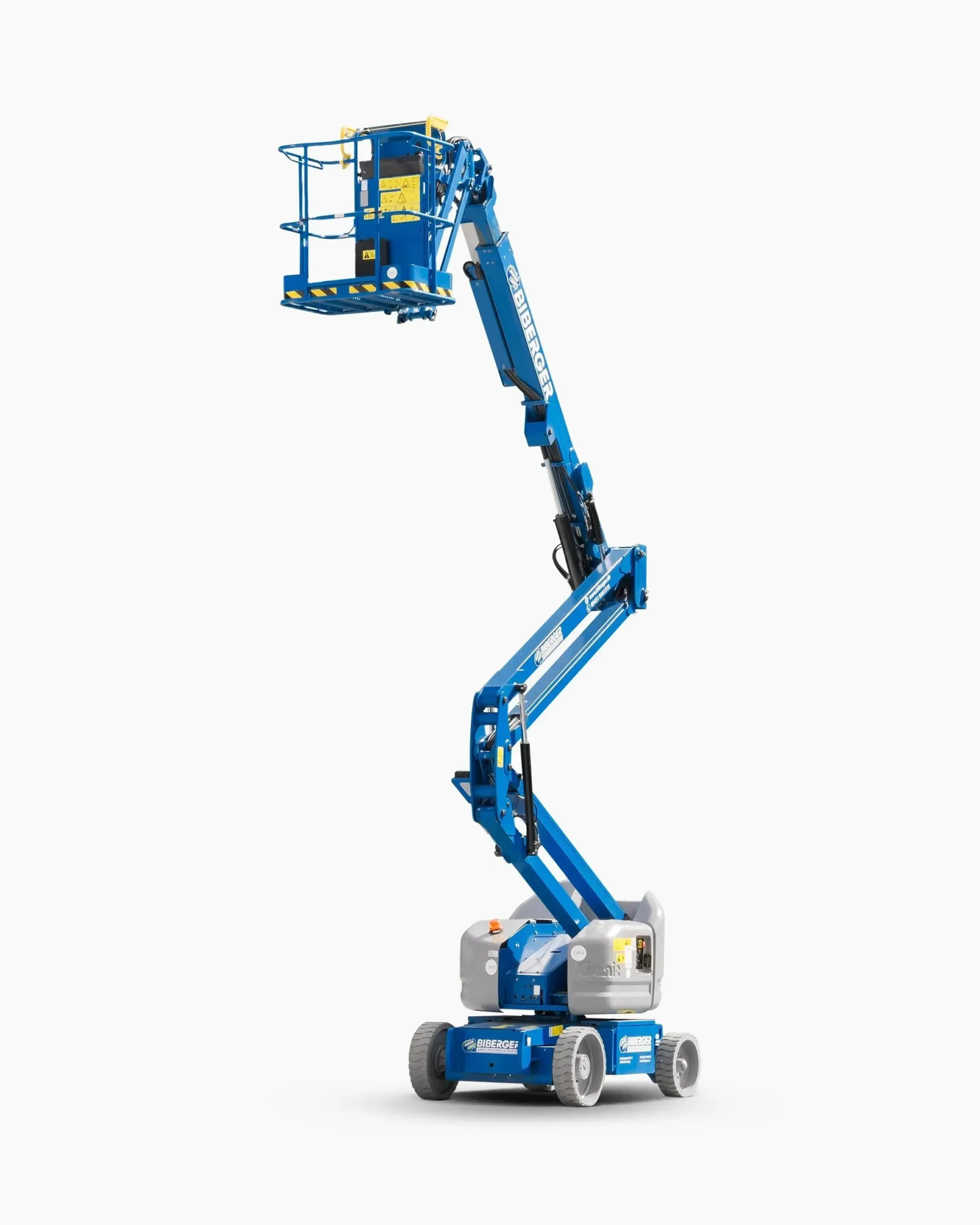

The Genie Z-40/23N RJ boom lift drawn to its real size. Rent it from American Tool Rental in Brooklyn, delivered to all five NYC boroughs. Full specs in the table below.

Call 718-344-1474 or request a quote. Delivery to all five NYC boroughs.

40 ft Narrow Electric Boom Lift (Genie Z40/23 N RJ) Rental in Brooklyn, NYC

The Genie Z-40/23N RJ is a narrow electric boom lift for tight indoor spaces. It reaches a 40 ft 5 in platform and 22 ft 8 in out, and its rotating jib lets you place the basket around pipes, beams and racks. It runs on batteries with zero emissions.

Genie Z-40/23N RJ specifications

Platform height40 ft 5 in
Working height46 ft 5 in
Horizontal reach22 ft 8 in
Up and over clearance21 ft 3 in
Platform capacity500 lb
Jib4 ft, 128° vertical rotation, rotating jib
Machine width4 ft 11 in
Platform width3 ft 10 in
Stowed length21 ft 5 in
Stowed height6 ft 6 in
Weight15,300 lb
Turning radius2 ft 11 in inside, 10 ft 6 in outside
Gradeability30%
Power48 V battery, zero emissions

Specifications from the Genie Z-40/23N RJ product specifications.

Good jobs for the Z-40/23N RJ

  • Indoor work where a scissor lift cannot get under or around obstacles
  • Pipe, conduit and sprinkler work between beams
  • Warehouse racking and high shelving
  • Building lobbies and atriums

Will the Z-40/23N RJ fit your job?

The Z-40/23N RJ has a narrow chassis and a tight 2 ft 11 in inside turning radius. It is 4 ft 11 in wide, 21 ft 5 in long, 6 ft 6 in tall when stowed and weighs 15,300 lb, so check the doors and the floor load. For a little more height and reach, see the Z-45/25J DC. All sizes are on our boom lift rental in NYC page.

Rental Details

Equipment typeAerial Work Platform
Rental periodsDaily, weekly, monthly
Pickup181 2nd Ave, Brooklyn, NY 11215
DeliveryAll five NYC boroughs
RatesCall 718-344-1474
AvailabilityCall or request a quote
Ready to rent the 40 ft Narrow Electric Boom Lift (Genie Z40/23 N RJ)?Call 718-344-1474 or request a quote

Z-40/23N RJ rental questions

What makes the RJ different?

RJ means rotating jib. The 4 ft jib moves up and down and side to side, so you can fine-tune the basket position without moving the whole machine.

Can it work indoors?

Yes. It is battery powered with zero emissions. It weighs 15,300 lb, so check the floor load.

How high and far can it reach?

The platform goes to 40 ft 5 in, the working height is 46 ft 5 in, and it reaches 22 ft 8 in out.

Why rent a narrow boom indoors?

The N model is built for tighter spaces than a standard boom, and the rotating jib sets the basket around pipes, ducts and beams. It runs on batteries, so there are no fumes in an occupied building. Our lift controls guide covers the controls.

40 ft Narrow Electric Boom Lift (Genie Z40/23 N RJ) delivery in NYC

We deliver from our yard at 181 2nd Ave, Brooklyn, to job sites in all five boroughs. Call 718-344-1474 or request a quote.
