6 in Diamond Core Bit Rental in Brooklyn, NYC

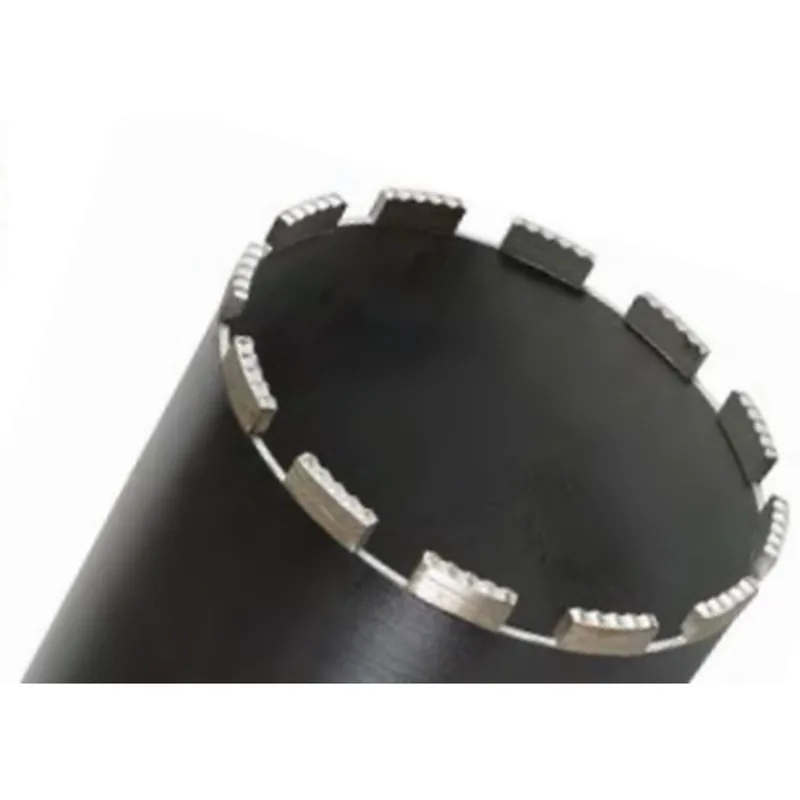

The 6 in diamond core bit cuts a round hole about 6 in across through concrete, block, brick and stone on a core drill. It has 12 diamond teeth and a 15 3/4 in overall length. Rent it from our Brooklyn yard at 181 2nd Ave, or have it delivered with your drill anywhere in the five boroughs. Call 718-344-1474.
6 in core bit for a water service sleeve through a foundation
A new four-story building in Bushwick is bringing a 3 in water service in from the street through the cellar foundation wall. Services this size in NYC are usually ductile iron, which measures 3.96 in on the outside for 3 in pipe. It goes through inside a 5 in Schedule 40 steel sleeve, which is 5.563 in on the outside and about 5 in inside. That leaves about 1/2 in around the pipe inside the sleeve for a watertight seal, and the 6 in core leaves about 7/32 in around the sleeve to set it in the wall. The sleeve protects the service if the building settles.
Tip: Tell us the sleeve size, not the pipe size, when you book. The sleeve is what has to fit the hole. If your plumber wants a thicker grout bed around the sleeve, step up to the 6 1/2 in bit.
Is 6 in the right size?
Measure the outside of the pipe, duct or sleeve that has to fit, not the size printed on it. Then leave room for sealant, grout or firestop around it. In the job above, that works out to about 7/32 in each side.
- Bigger pipe or duct? Try the 6 1/2 in diamond core bit. Its usual job: kitchen range hood (6 in round duct).
- Smaller pipe or duct? Try the 5 in diamond core bit. Its usual job: waste stack through a floor slab (4 in no-hub cast iron, 4.38 in OD).
- See every size and what it fits in our core bit size chart.
Specifications and Features
Rental Details
Which drill: for a bit this size, use a 36 in core drill rig or the 48 in EDCO rig (up to 8 in) for straight holes in slabs and thick walls. Already have a drill? Tell us the model when you request a quote and we will check that the bit fits it.
Drill wet. Keep water running to cool the bit and keep silica dust down, and read the OSHA guidance on crystalline silica before you start. Scan slabs for rebar, conduit and post-tension cables before you core a floor.
